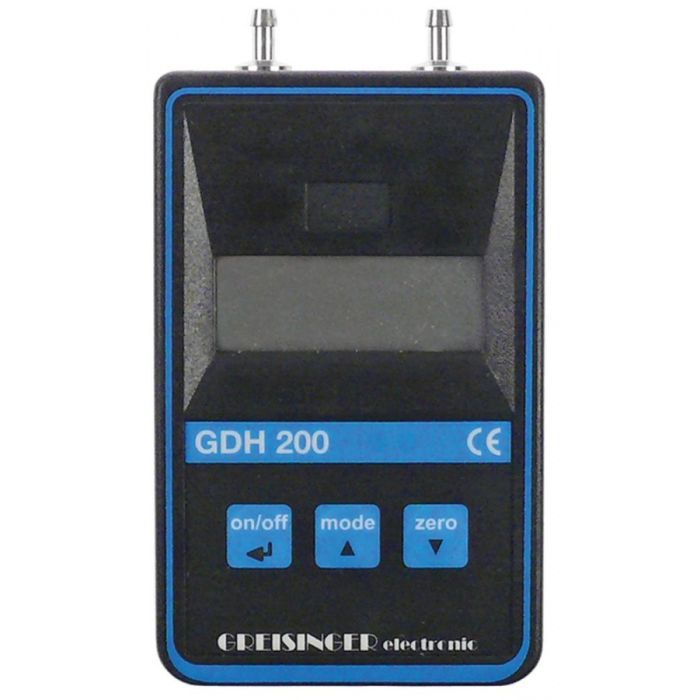

pressure meter 0 up to 19,99 / 199,9mbar type GDH 200-07 vacuum/over-/differential-pressure
Livrare estimată: 25.09.2026
SKU
800005
2.699,26 RON
2.230,79 RON
2.230,79 RON
Livrare oriunde in tara prin curier rapid.
| measurement range | 0 up to 19.99 / 199.9 mbar |
| type | GDH 200-07 |
| function | vacuum/over-/differential-pressure |
| probe type | relative pressure sensor |
| measurement unit | Pa/mbar/mmHg,PSI |
| connections | 2 |
| operating positions | min/max value, tare |
| resolution | 0.01 |
| hose connector | 4 mm |
| accuracy (temperature dependency) | ﾱ0.4%FS |
| accuracy (hysteresis and linearity) | ﾱ0.2%FS |
| overload | max. 0.5 bar |
| interface | - |
| sensor | piezoresistant gauge pressure sensor, int. |
| dimensions | 106x67x30 mm |
| scope of delivery | incl. battery |
| Producator | . |
|---|
