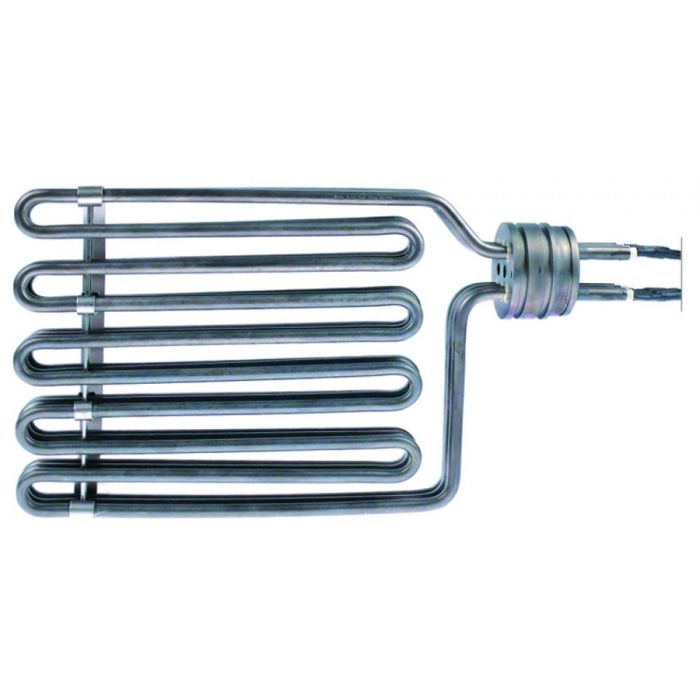

heating element 9000 W 230/400V heating circuits 3 mounting pos. right L 310 mm - 418778
Livrare estimată: 25.09.2026
SKU
418778
3.145,95 RON
2.599,96 RON
2.599,96 RON
Livrare oriunde in tara prin curier rapid.
| power | 9000 W |
| voltage | 230/400 V |
| heating circuits | 3 |
| mounting position | right |
| length | 310 mm |
| width | 205 mm |
| height | 32 mm |
| flange length | 36 mm |
| flange length 1 | 28.2 mm |
| flange length 2 | 7.8 mm |
| flange diameter 1 | 62 mm |
| flange diameter 2 | 58 mm |
| diameter thermostat sleeves | 8 mm |
| position thermostat sleeve | upper/lower |
| length 1 | 25 mm |
| length 2 | 285 mm |
| width 1 | 34 mm |
| width 2 | 35 mm |
| tube diameter | 8.5 mm |
| cable length | 300 mm |
| mounting | rotation flange |
| application | fryer |
| sensor screw connection | M10x1 |
| sensor ducts | 2 |
| Producator | Baron |
|---|
