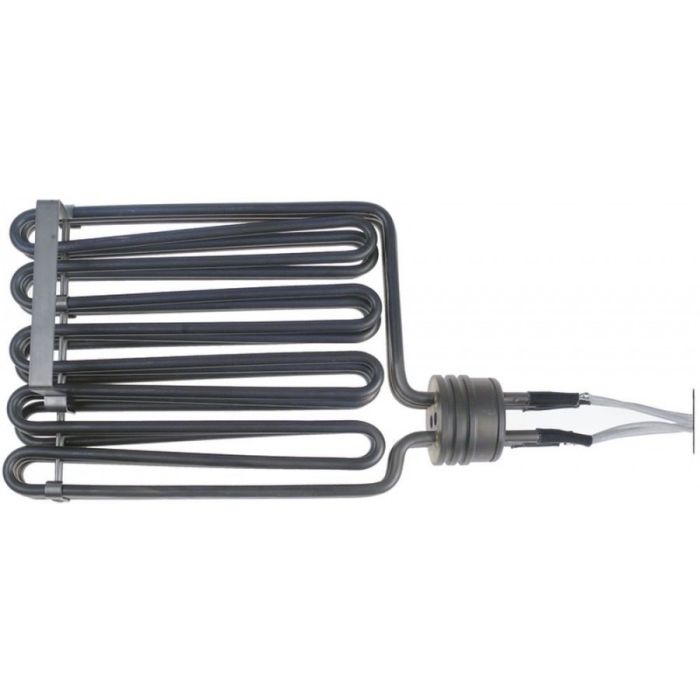

heating element 9000 W 230/400V heating circuits 3 mounting pos. right L 285 mm - 418628
Livrare estimată: 25.09.2026
SKU
418628
3.369,54 RON
2.784,74 RON
2.784,74 RON
Livrare oriunde in tara prin curier rapid.
| power | 9000 W |
| voltage | 230/400 V |
| length | 285 mm |
| length 1 | 20 mm |
| length 2 | 265 mm |
| width 1 | 37 mm |
| width 2 | 36 mm |
| mounting | rotation flange |
| tube diameter | 8,5 mm |
| heating circuits | 3 |
| cable length | 360 mm |
| height | 35 mm |
| width | 205 mm |
| number of windings | 5 |
| diameter thermostat sleeves | 9 mm |
| connection length | 70 mm |
| flange length 1 | 23,5 mm |
| flange length 2 | 13,2 mm |
| flange length | 36,2 mm |
| flange diameter 1 | 61,8 mm |
| flange diameter 2 | 57,9 mm |
| sensor ducts | 2 |
| mounting position | right |
| position thermostat sleeve | upper/lower |
| sensor screw connection | 2x M10x1 |
| Producator | MBM |
|---|
