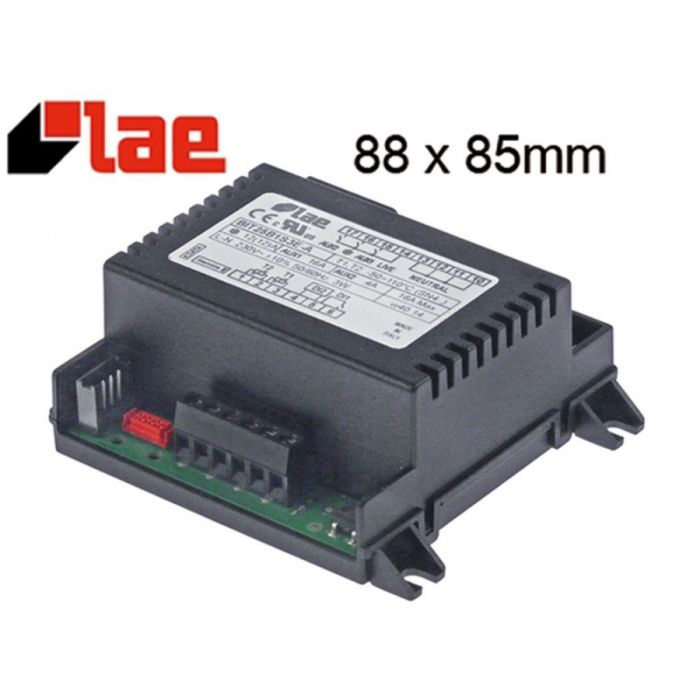

load module LAE type BIT25B1S3E-A mounting measurements 88x85mm 230V voltage AC NTC - 403458
Livrare estimată: 25.09.2026
SKU
403458
386,23 RON
319,20 RON
319,20 RON
Livrare oriunde in tara prin curier rapid.
| producer | LAE |
| type | BIT25B1S3E-A |
| mounting measurements | 88x85 mm |
| supply | 230 V |
| voltage type | AC |
| probe type | NTC |
| relay outputs | 3 |
| relay output 1 | NO-20A(8) |
| relay output 2 | NO-16A(4) |
| relay output 3 | NO-7A(2) |
| relay output 4 | - |
| relay output 5 | - |
| relay output 6 | - |
| relay output 7 | - |
| input 1 | NTC |
| input 2 | NTC |
| input 3 | DI |
| input 4 | DI |
| input 5 | - |
| front dimensions | - mm |
| built-in depth | 40 mm |
| kind of protection | IP55 |
| real time clock | - |
| buzzer internal | yes |
| scope of delivery | - |
| interface RS485 | yes |
| measuring range | -50 up to +110 ﾰC |
| display | - |
