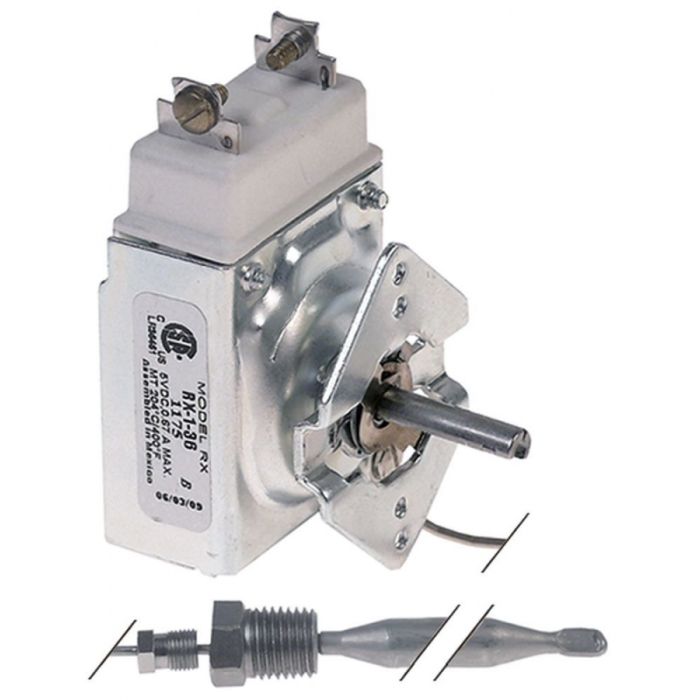

Termostat RX-1-36, 93-204°C, contact 1NO, 0,67A, la 5V DC, capilar ø 9,5 x 123mm - 390636
Livrare imediata
SKU
390636
1.898,87 RON
1.569,31 RON
1.569,31 RON
Livrare oriunde in tara prin curier rapid.
| temperature max. | 204 °C |
| operating temperature range | 93-204 °C |
| number of poles | 1 -pole |
| function | 1NO |
| switching capacity | 0.67 A |
| probe diameter | 9.5 mm |
| probe length | 123 mm |
| capillary pipe length | 915 mm |
| capillary pipe length insulated | - mm |
| gland nut | 1/4" NPT |
| shaft diameter | 6x4.6 mm |
| shaft length | 21 mm |
| shaft position | lower |
| rotation angle | 315 ° |
| probe material | nickel-plated |
| probe thread | 1/4" US |
Robertshaw - RX-1-36, R-RX-1-36
| Producator | Anets, Dean, Franke, Imperial-Germany, Imperial-USA, OEM, Robertshaw, Tri-Star |
|---|
